The U.T. Pole (a multi-wire-duct, tubing, multi box and distribution cabinet combined in one) comes with an appropriate structure and ancillary units that comply with the dimensions and specifications of wiring systems as stipulated in Article 187 (Metal Duct Work) of the Evaluation Standards of the Technical Guidelines for Electrical Facilities.
The pole features
aluminum (material) finished with powder painting;
abilities to expand, extend or relocate, using multi box type for manufacture;
excellent color-rendering and insulating qualities, allowing for the use of various powder paints;
equi-potential ground bonding which bolts all parts and diaphragms; and
perfect EMC screening materialized by diaphragms ground between electrical and communication circuits

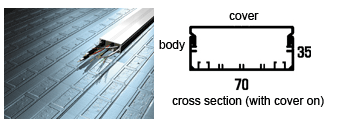

WA35 Wiring (Slim)
Material : aluminum extruded shapes (diaphragm fixture)
Thickness : 1.5mmt
Finish : powder painting (basic white)
Dimension : 70mmW x 35mmH x 2mL
Features : * horizontal arrangement of wiring devices
* separate collection of wiring
* easy extension and relocation of wiring devices
